ECM Espresso Machine Mechanika Max Portafilter Machine 82295

Smart HX® with Flush Advisor, Brew Temperature Control and many other features.

With the new Smart HX® dual-circuit system – HX stands for Heat Exchanger – the proven heat exchanger technology has been rethought. Smart features offer additional convenience and allow you to focus on what matters most: the perfect espresso experience.

An additional sensor in the brewing group inlet ensures near-perfect temperature control of the thermosyphon. A sophisticated control system guarantees that the set temperature is maintained. This combines the temperature consistency of a single-circuit machine with the flexibility of a dual-circuit machine.

In HX mode, the machine operates like a regular dual-circuit system. The boiler temperature can be easily adjusted via the PID.

The Flush Advisor (FLU) extends the HX mode by recommending a flush if the machine has overheated due to prolonged inactivity. It can also be activated and displayed via the PID and ensures you can always brew your espresso at the ideal temperature.

Thanks to intelligent control technology, Brew Temperature Control (btC) mode allows you to directly adjust the brewing temperature, ensuring brewing temperature stability. For this purpose, we use a sensor mounted on the head of the brewing group that measures the temperature.

The pre-infusion (Pi) can also be precisely adjusted with the Mechanika MAX. Active and passive pre-infusion are set separately, allowing for precise adjustment to individual taste.

The machine features a timer function that allows you to schedule the machine's operating times in advance. This feature allows you to set when the machine should automatically turn on and off.

The Mechanika Max is a state-of-the-art machine that offers a wide range of customization options thanks to its extensive features. With a total of 19 different menu items, you can adjust the machine to your preferences and thus enjoy a personalized coffee experience.

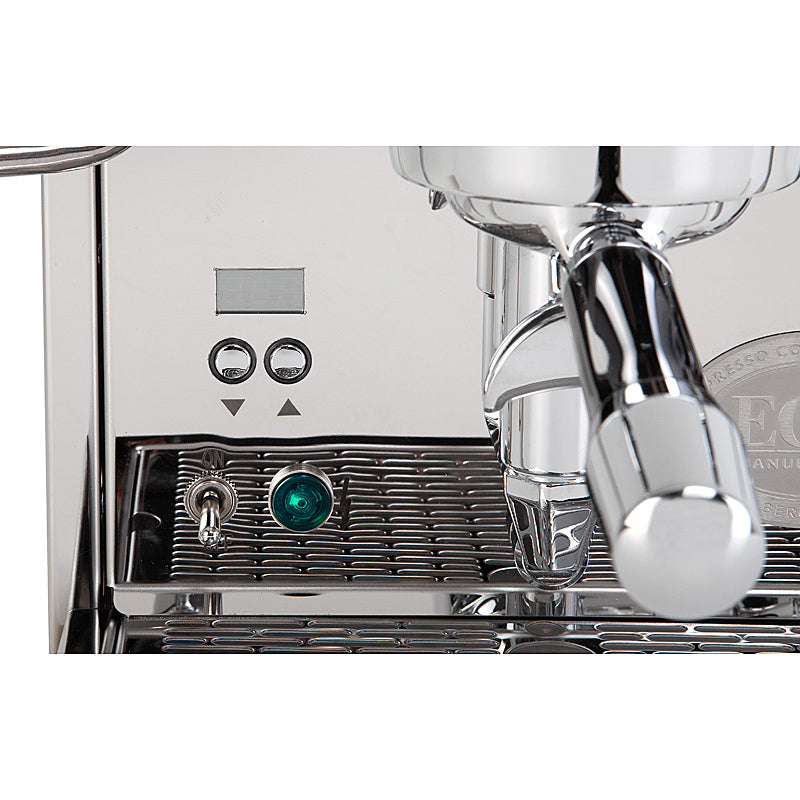

Numerous practical and user-friendly functions via the PID controller

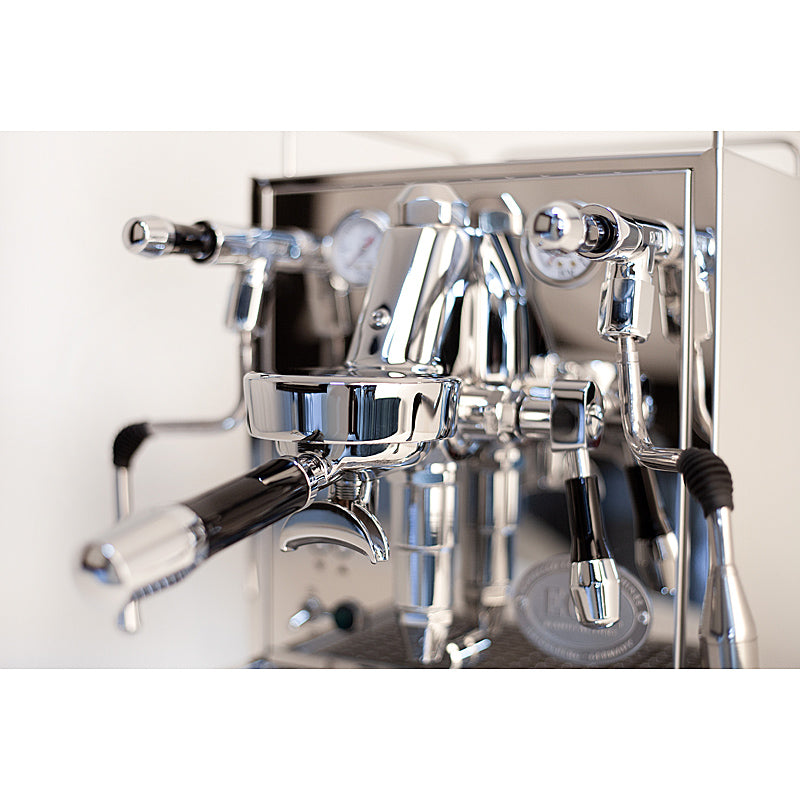

High-quality ECM brewing group with innovative stainless steel bell
Convenient access to the water tank thanks to the removable cup warming surface
Quiet rotary pump
Switchable from water tank to fixed water connection

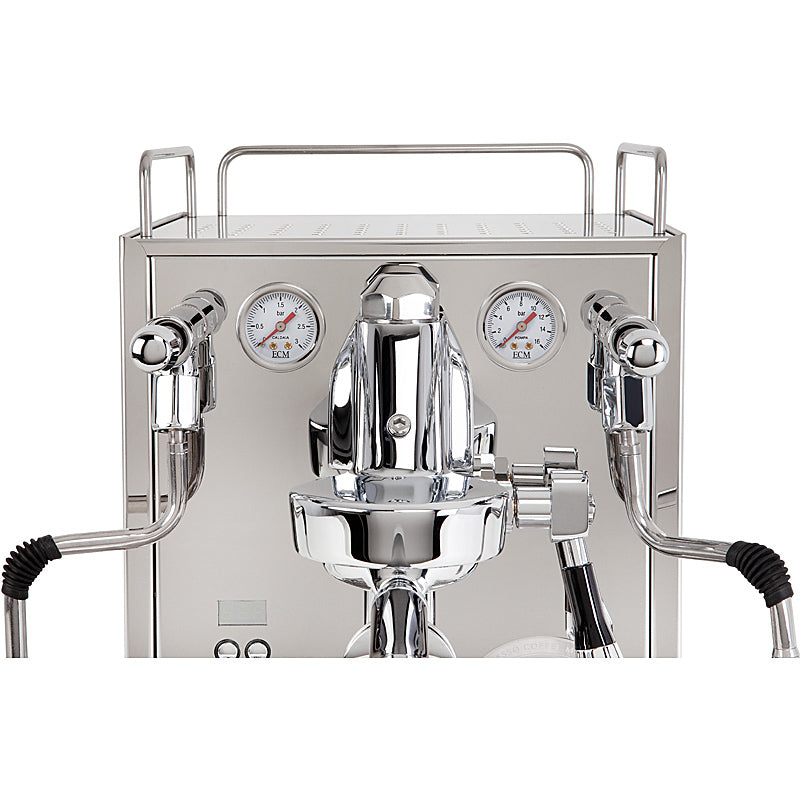

Professional tilt valves for steam and hot water extraction
2 ergonomically angled ECM filter carriers with balanced weight distribution
ECM brewing group
Fresh water tank approx. 3 l
Boiler volume approx. 1.9 l
stainless steel kettle
boiler pressure gauge
Pump pressure gauge
PID control
Display
Rotary pump
Switching water tank/fixed water connection
Tilt valve technology
Removable cup warming surface
ECM filter carrier
Number of filter holders 2 pieces included in delivery
Weight 23.5 kg
Dimensions (without filter holder) W x D x H 275 x 445 x 405 mm
Accessories included:

1 filter holder with one spout and angled handle
1 filter holder with two spouts and angled handle
1 cup strainer 7g
1 second-cup sieve 14g
1 blind sieve
1 plastic tamper
1 cleaning brush
1 instruction manual
1 measuring spoon
