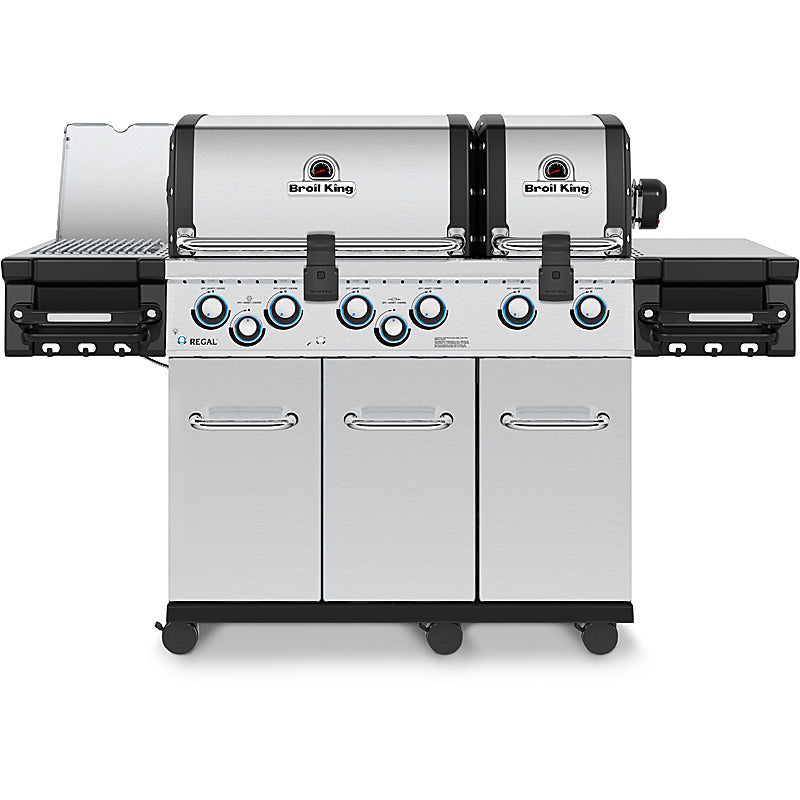

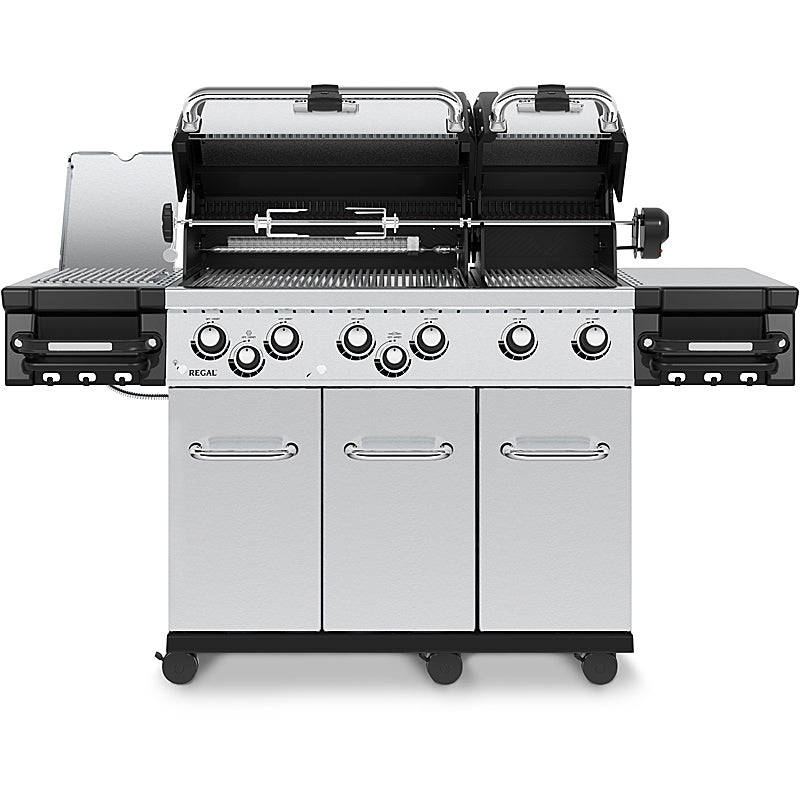

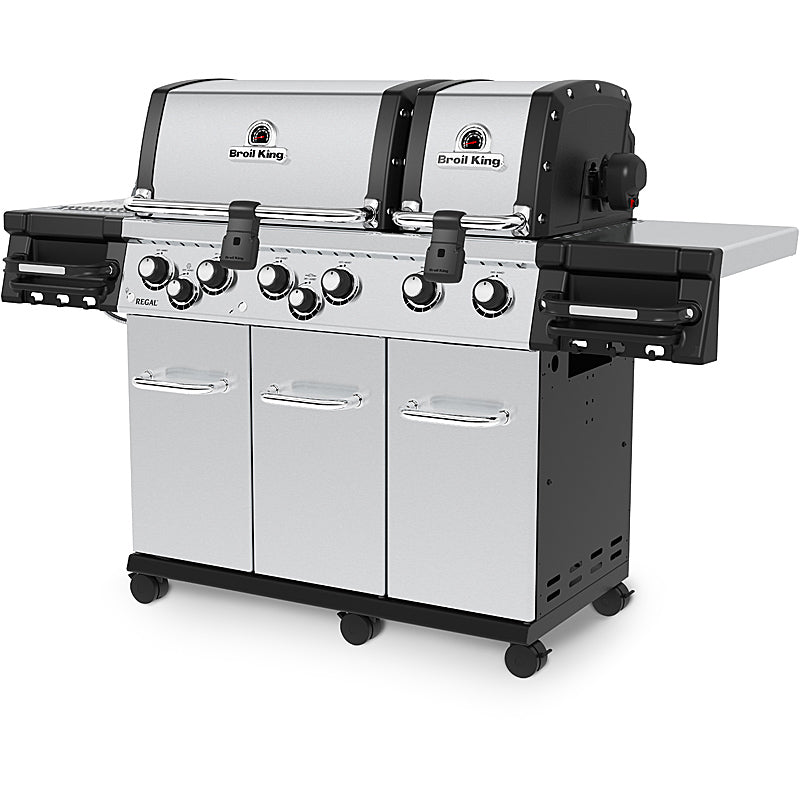

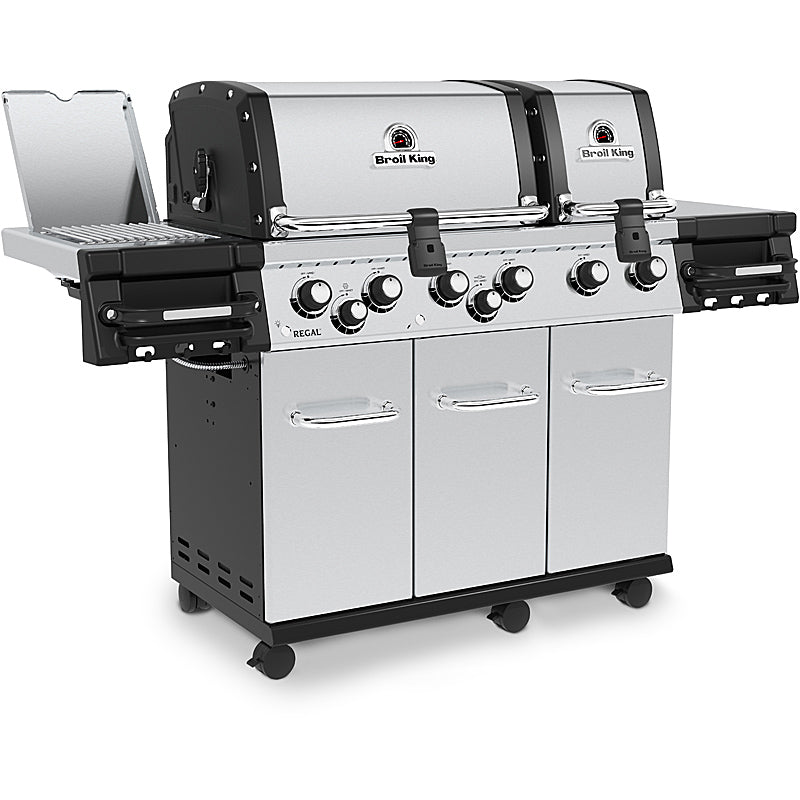

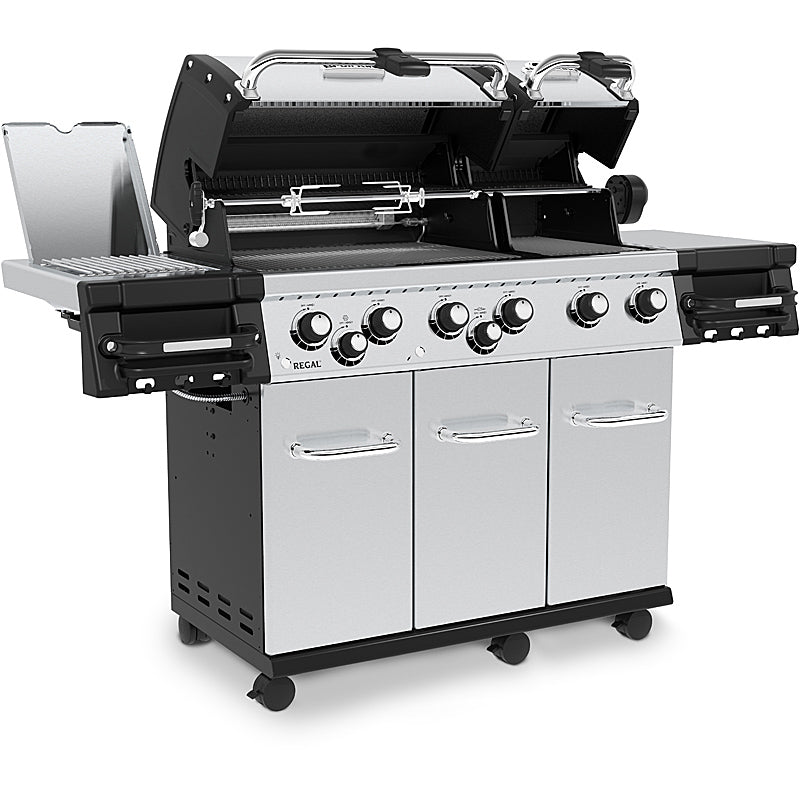

Broil King REGAL S690 PRO IR gas grill 997942

The Broil King Regal S 690 PRO IR is a luxurious gas grill that impresses with its enormous cooking surface, powerful burners, and premium materials. Ideal for grill masters who demand the highest standards of versatility, precision, and design.

Equipped with six Dual-Tube™ stainless steel burners, an infrared side cooking zone, and a powerful spit roast burner, it offers a total output of 24.7 kW. The two separate grill chambers—one with solid 9 mm stainless steel grates, the other with enameled cast iron grates—offer maximum flexibility. A stainless steel Flav-R-Wave™ system ensures even heat distribution and an unparalleled grilled flavor.

The robust stainless steel housing, double-walled lid with cast aluminum side panels, and illuminated control knobs underscore the grill's premium character. Stainless steel side shelves, a closed undercarriage with three doors, and many other sophisticated features make it the centerpiece of any outdoor kitchen.

Performance
Gas type: Propane
6 Dual Tube stainless steel rod burners: 2.93 kW each
Side cooking plate / infrared burner: 2.7 kW
Spit roast burner: 4.4 kW
Total burner output: 24.7 kW
Grill areas
Main grill area: 64 x 48.5 cm – with 2-piece 9 mm stainless steel grate
Secondary grilling area: 30 x 48.5 cm – with 2-piece Flav-R-Cast cast iron grate (matte enamel)
Warming racks: 62 x 21 cm and 26 x 21 cm (enameled)
equipment
Stainless steel Flav-R-Wave™ evaporation system
Linear Flow™ gas nozzles with 180° Sensi-Touch™ control
Two Deluxe Accu-Temp™ Thermometers
Sure Lite™ electric ignition (incl. on the spit roast burner)
Double-walled stainless steel lid with cast aluminum side panels
Stainless steel base with cast aluminum side panels
Stainless steel lid handle
Stainless steel control panel with LED control button illumination
Stainless steel side shelves with accessory hooks and front shelves
Cabinet undercarriage with gas cylinder integration (for 11 kg cylinder)
Three stainless steel doors with stainless steel handles
Six lockable castors, three of which are height-adjustable
Dimensions: Width: 178 cm, Depth: 63 cm, Height: 125 cm
Weight: approx. 123 kg

The Broil King guarantee supplements your statutory rights, in particular your warranty rights against the seller. It applies additionally and voluntarily through Broil King Deutschland GmbH.

The warranty applies exclusively to the original purchaser, provided they are a consumer and use the appliance for personal use. The prerequisite is that the grill is registered within 24 months of purchase at www.broilking.de. The warranty begins on the date of purchase and is valid for normal use, as well as proper assembly, maintenance, and care according to the owner's manual. The warranty is non-transferable.

Warranty periods (devices built from 2020):

Imperial & Regal:

Lid & die-cast parts: lifetime

Stainless steel base: lifetime

Stainless steel grates & burners: 15 years

Cast iron grates, Flav-R-Wave™, side/rear burners: 15 years

Other components: 15 years

Baron, Signet & Monarch:

Lid & die-cast parts: lifetime

Stainless steel grates: 5 years

Cast iron grates: 2 years

Flav-R-Wave™, side/rear burner: 2–10 years

Other components: 2 years

Crown:

Cover, die-cast & base: 10 years

Cast iron grates & Flav-R-Wave™: 2 years

Burner, side & rear burner: 5 years

Other components: 2 years

Royal & GEM:

Lid & die-cast: 10 years

Cast iron grates & Flav-R-Wave™: 2 years

Burner & side burner: 5 years

Other components: 2 years

Warranty coverage:
Coverage includes defects in materials and workmanship, including rust or burning, under normal use. Defective parts will be repaired or replaced free of charge (at Broil King's discretion).

Not covered:

Damage caused by improper use, accidents, grease fires, pests

Superficial damage (scratches, rust, discoloration)

Normal wear and tear, weather conditions, force majeure

Damage caused by incorrect gas types or incorrect commissioning

Commercial use

Spare parts not from Broil King

Costs after 2 years (shipping, installation/removal, service trips)

Notes:
Use only original Broil King replacement parts. The lifespan of stainless steel burners depends heavily on care and use. Warranty claims are limited to the original purchase price. For replacement parts, the remaining warranty period begins on the date of purchase. Extensions are not possible.

Warranty case:
Contact your dealer or Broil King directly. Please have the following information available: your receipt, model/serial number, a description of the defect, and photos/videos if necessary. Without a receipt, the serial number will be used to determine the warranty period.

Contact:
Broil King Deutschland GmbH
Spinnerweg 51–54, 53783 Eitorf
Fax: 02243 – 911 862 44
Email: service@broilking.de

Gas type: Propane
6 Dual Tube stainless steel rod burners: 2.93 kW each
Side cooking plate / infrared burner: 2.7 kW
Spit roast burner: 4.4 kW
Total burner output: 24.7 kW
Main grill area: 64 x 48.5 cm – with 2-piece 9 mm stainless steel grate
Secondary grilling area: 30 x 48.5 cm – with 2-piece Flav-R-Cast cast iron grate (matte enamel)
Warming racks: 62 x 21 cm and 26 x 21 cm (enameled)
Stainless steel Flav-R-Wave™ evaporation system
Linear Flow™ gas nozzles with 180° Sensi-Touch™ control
Two Deluxe Accu-Temp™ Thermometers
Sure Lite™ electric ignition (incl. on the spit roast burner)
Double-walled stainless steel lid with cast aluminum side panels
Stainless steel base with cast aluminum side panels
Stainless steel lid handle
Stainless steel control panel with LED control button illumination
Stainless steel side shelves with accessory hooks and front shelves
Cabinet undercarriage with gas cylinder integration (for 11 kg cylinder)
Three stainless steel doors with stainless steel handles
Six lockable castors, three of which are height-adjustable
Dimensions: Width: 178 cm, Depth: 63 cm, Height: 125 cm
Weight: approx. 123 kg
